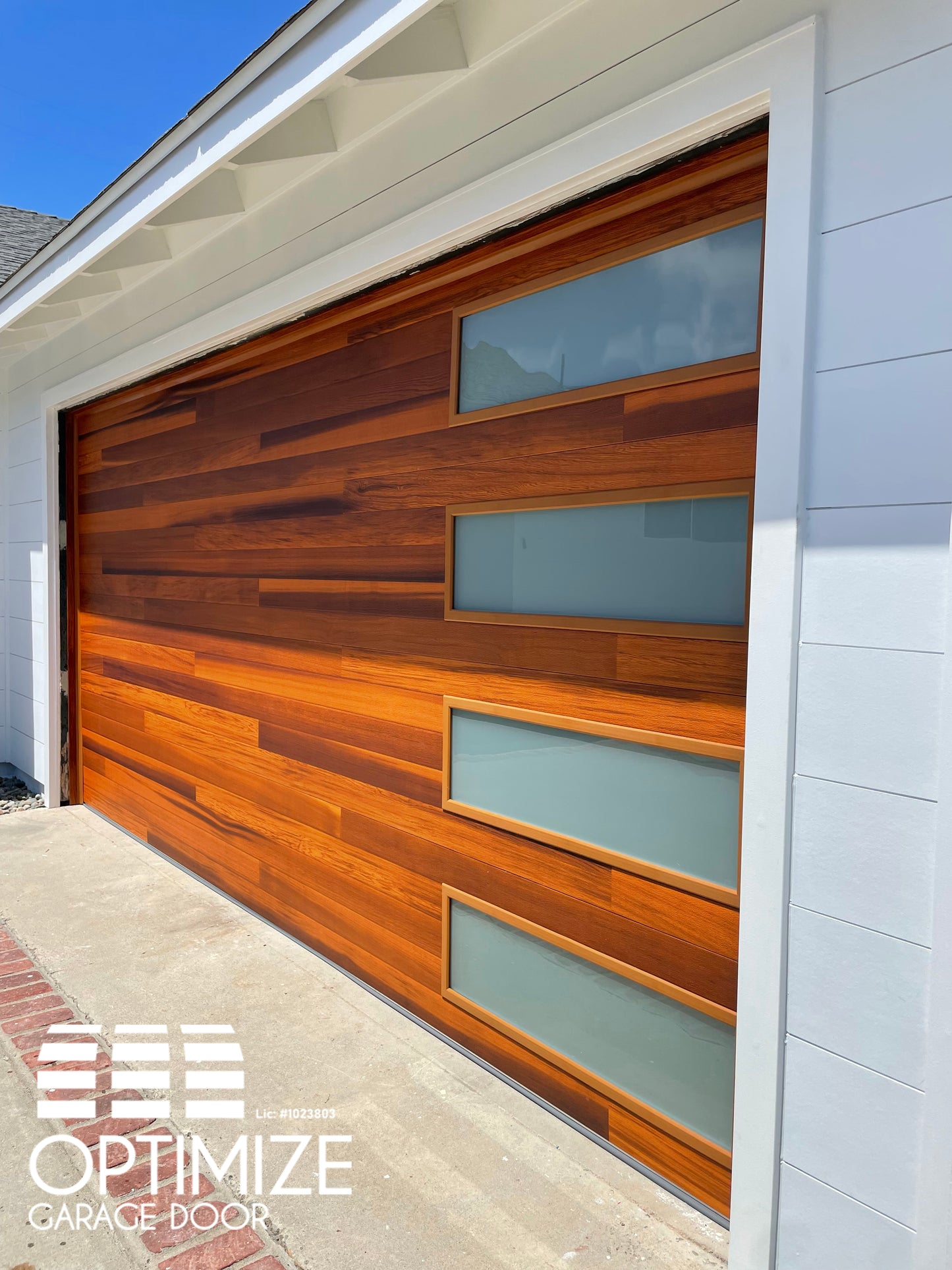

Modern Cedar Planks 02
Door Frame: 24 gauge steel heavy-duty
Door Face Color: cedar
Inside Door Color: white
Glass size thickness: 1/8''
Glass color: White Laminate
* Specialty glass available upon request for additional cost.
All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures.
2'' nylon 10 ball bearing rollers.
Inside lock included.
All woodtone garage doors include 2'' tracks with 12'' Radius - 14 gauge horizontals with 17 gauge verticals.
Options: For additional cost low head room (0'' or 3.5''), High Lift, Vertical Lift, Follow the Pitch Lift. Contact us for more details.
Counterbalance Torsion Springs Included
Springs are oil tempered and calibrated per door weight, size and track requirements.
Woodtone garage doors include standard springs with 10,000 cycles
12 gauge bearing & spring plates
16 gauge torsion tube is standard.
QTY (1) 22 gauge 2-1/4'' galvanized steel struts come with every door.
4'' bulb type bottom weather-seal is standard with all woodtone garage doors, 6'' is available at an additional cost.
Limited lifetime warranty against cracking, chipping on garage door sections only; Limited 1 year warranty on hardware or components.
* Installation & Motor not included in price.
