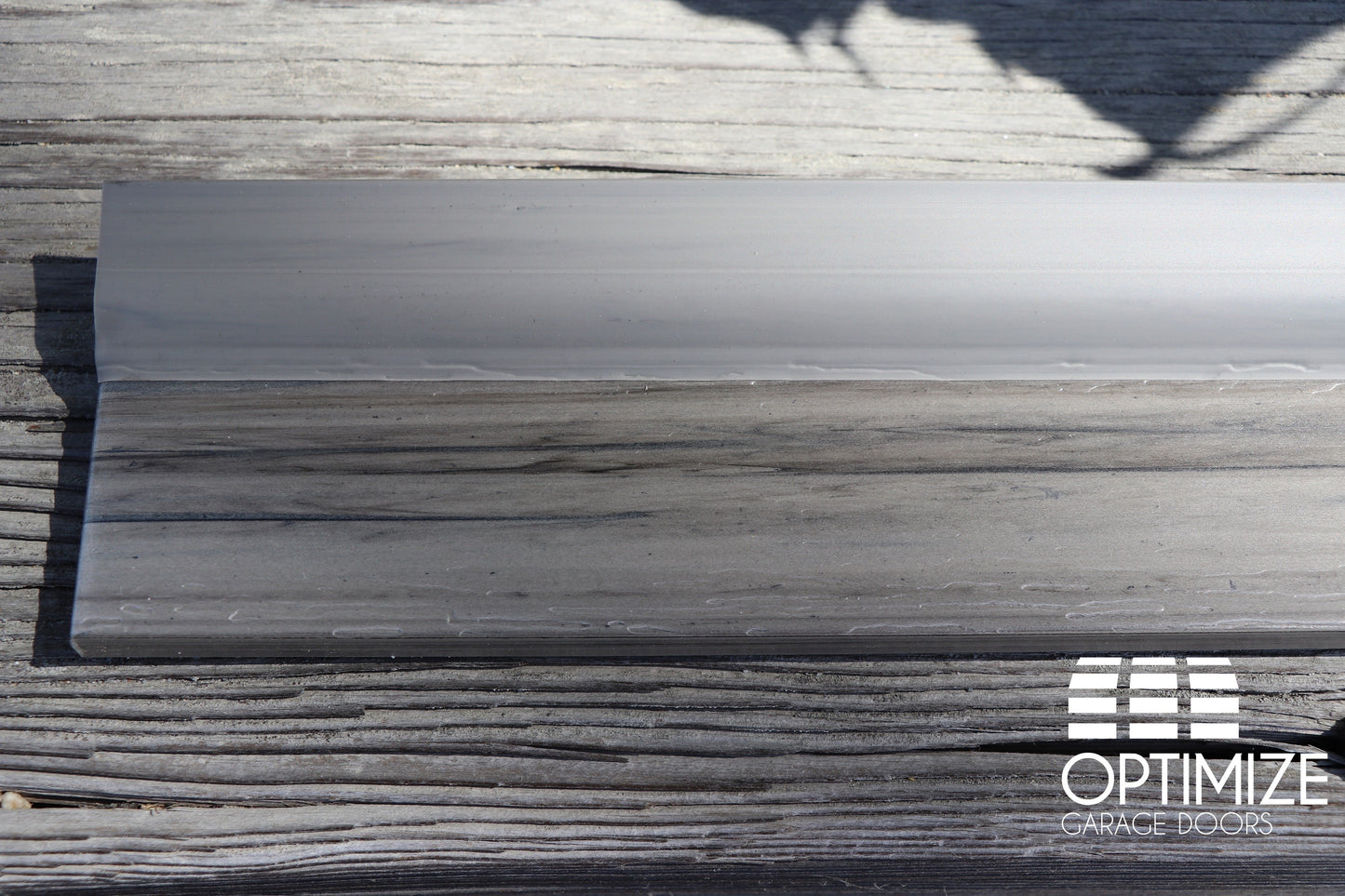

Modern Gray Planks

Modern Gray Planks

Plank Woodtones

Door Frame

Door Frame: 24 gauge steel heavy-duty

Door Face Color: drift wood

Inside Door Color: white

Design: Planks

Glass

Glass size thickness: 1/8''

Glass color: obscure

* Specialty glass available upon request for additional cost.

Hardware Included

All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures.

2'' nylon 10 ball bearing rollers.

Inside lock included.

Tracks Included

All woodtone garage doors include 2'' tracks with 12'' Radius - 14 gauge horizontals with 17 gauge verticals.

Options: For additional cost low head room (0'' or 3.5''), High Lift, Vertical Lift, Follow the Pitch Lift. Contact us for more details.

Counterbalance Torsion Springs Included

Springs are oil tempered and calibrated per door weight, size and track requirements.

Woodtone garage doors include standard springs with 10,000 cycles

12 gauge bearing & spring plates

16 gauge torsion tube is standard.

Struts

QTY (1) 22 gauge 2-1/4'' galvanized steel struts come with every door.

Weather Seal

4'' bulb type bottom weather-seal is standard with all woodtone garage doors, 6'' is available at an additional cost.

Warranty

Limited lifetime warranty against cracking, chipping on garage door sections only; Limited 1 year warranty on hardware or components.

* Installation & Motor not included in price.
