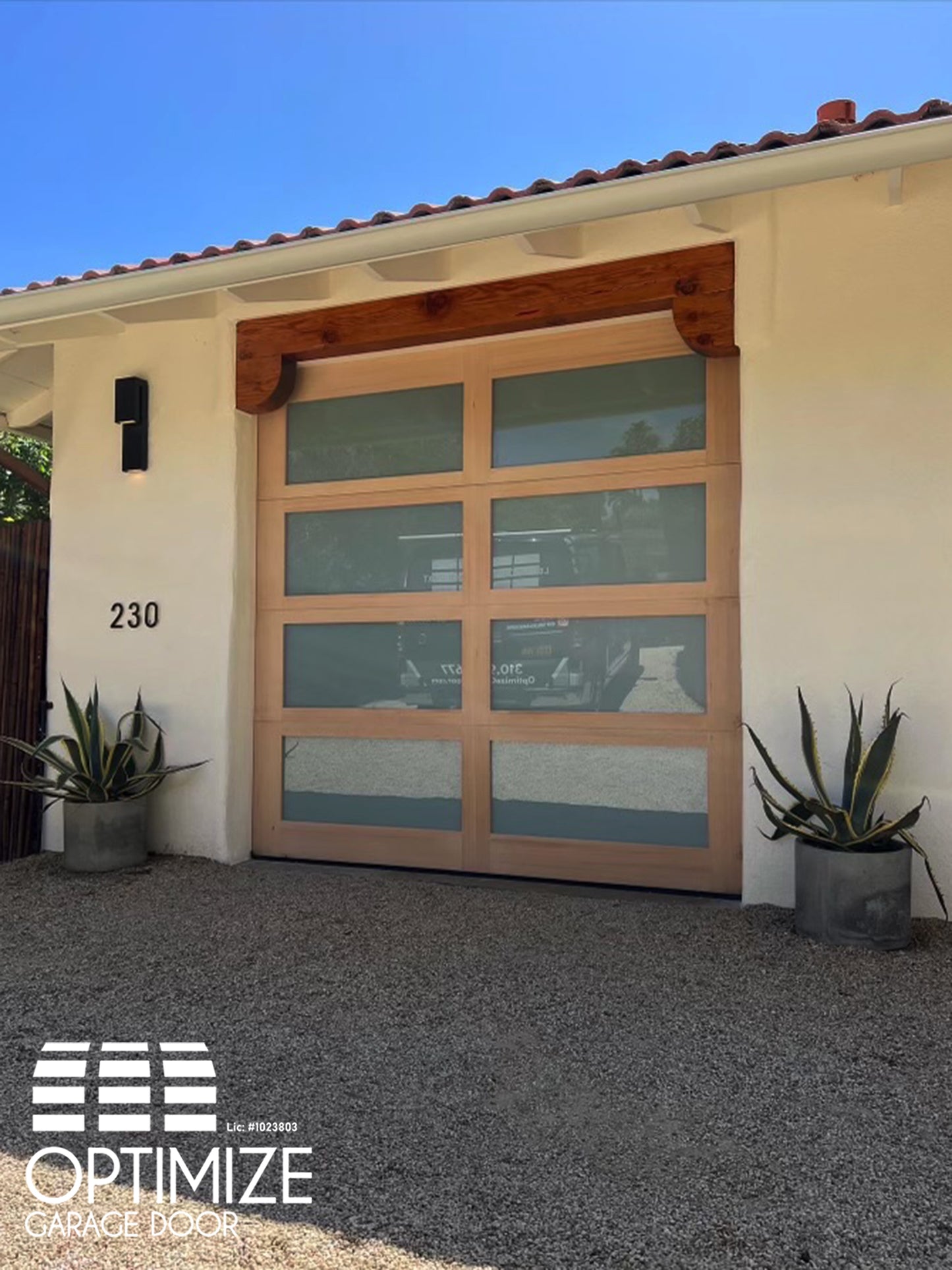

Modern wood full view glass garage door
Wood Door Frame
Top Rail: 4-5/8''
Bottom Rail: 4-5/8''
Combined Intermediate Rails: 4-1/4''
Center Stile: 2-7/8''
End Stile: 4-5/8''
Door Frame: cedar wood
*All wood doors come unfinish and requires sanding prior to staining. (Stain finishing is required to be completed within 72 hours of installation)
Glass size thickness: 1/4''
Glass color: white laminated
* Specialty glass available upon request for additional cost.
All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures.
2'' nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-term for hinges.
Inside lock included.
All glass doors include 2'' tracks with 12'' Radius - 14 gauge horizontals with 17 gauge verticals.
All tracks are mounted with reverse continuous jamb angle.
Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal.
Options: For additional cost low head room (0'' or 3.5''), High Lift, Vertical Lift, Follow the Pitch Lift. Contact us for more details.
Counterbalance Torsion Springs Included
Springs are oil tempered and calibrated per door weight, size and track requirements.
Glass garage doors include standard springs with 10,000 cycles
12 gauge bearing & spring plates
16 gauge torsion tube is standard, 14 gauge, 11 gauge and solid shafts are available and used when specified.
QTY (2) 22 gauge 2-1/4'' galvanized steel struts come with every door.
4'' bulb type bottom weather-seal is standard with all glass garage doors.
Limited 2 year warranty against cracking, chipping; Limited 1 year warranty on hardware or components.
* STAIN NOT INCLUDED WITH GARAGE DOOR
* Installation & Motor not included in price
* Free Customer Pick-up
* Does not include Delivery
* All Garage Doors will be charged with TAX
